MPO Trunk Cables
12-Fiber High-Density Trunk Cables | Single Mode OS2, Multimode OM3 & OM4
Professional-grade MPO trunk cables with elite 0.35dB connectors for 40G/100G data centers. Factory-tested Type B polarity, available in OS2 single-mode, OM3 multimode, and OM4 multimode. Lengths from 1m to 100m+.
High-Performance 12-Fiber MPO Trunk Cables
MPO (Multi-Fiber Push-On) trunk cables provide high-density fiber connectivity for modern data centers. Our 12-fiber MPO trunk cables enable rapid deployment of 40G and 100G networks with 80% faster installation compared to traditional duplex fiber.
Each cable features female MPO connectors on both ends with Type B polarity configuration, making them ideal for direct equipment connections and structured cabling systems.
Every MPO trunk cable undergoes rigorous factory testing including insertion loss, return loss, and polarity verification. We use premium components: elite-grade connectors achieving 0.35dB maximum insertion loss, Corning® fiber, and professional-grade LSZH jackets.
Elite 0.35dB Connectors
Type B Polarity
Premium Corning Fiber
Why Choose Our MPO Trunk Cables
Elite 0.35dB Low-Loss Connectors
Superior performance vs standard 0.5-0.75dB connectors. Critical for 40G/100G applications with tight power budgets.
100% Factory Tested
Every cable tested for insertion loss, return loss, and polarity. Complete test reports included with documentation.
Type B Polarity Standard
Industry-standard key-up to key-down configuration. Works seamlessly with cassettes and equipment.
Premium Components
Corning® ClearCurve® or SMF-28® fiber. High-precision ceramic ferrules. Professional LSZH jackets.
80% Faster Installation
One 12-fiber MPO cable replaces six duplex LC cables. Dramatically reduces installation time and labor costs.
Fast Shipping Available
Standard lengths ship within 2-5 business days. Custom cables manufactured in 2-3 weeks. Nationwide delivery.
Select Your Fiber Type & Length
Choose the fiber type that matches your application, then select from available lengths. All configurations available for immediate quote.

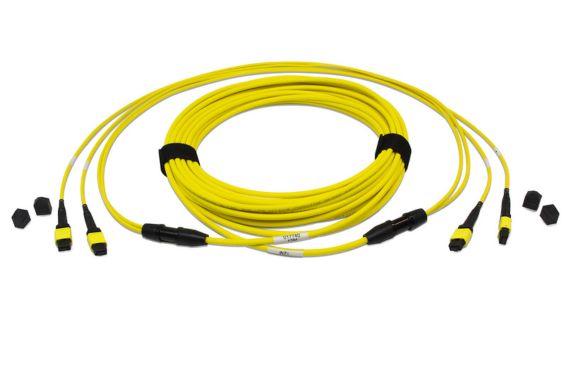

MPO Single Mode OS2 Trunk Cables
OS2 9/125μm Single-Mode | Yellow Jacket
Applications:
- ✓Campus backbone networks
- ✓Building-to-building connections
- ✓Metropolitan area networks
- ✓Data center interconnect (DCI)
MPO Multimode OM3 Trunk Cables
OM3 50/125μm Multimode | Aqua Jacket
Applications:
- ✓10G data center networks
- ✓Enterprise horizontal cabling
- ✓Storage area networks
- ✓Cost-effective short-reach links

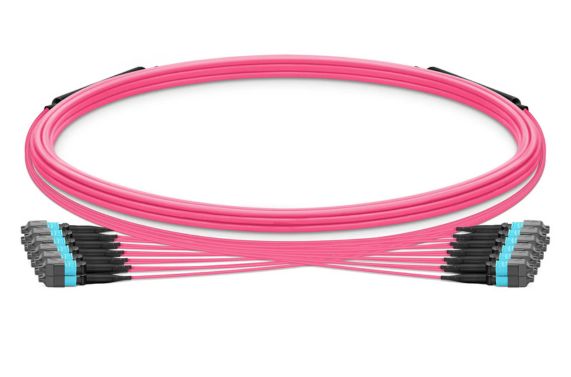

MPO Multimode OM4 Trunk Cables ⭐
OM4 50/125μm Multimode | Magenta / Erika Violet Jacket
Applications:
- ✓40G/100G data center networks
- ✓Spine-leaf architectures
- ✓High-performance computing
- ✓Future-proof infrastructure
⭐ Why OM4 is Recommended
- Supports current 40G/100G standards
- 50% greater distance than OM3 at same speed
- Future-proof for emerging applications
- Best value for modern data centers
Which Fiber Type Do You Need?
Quick Recommendation:
Request a quote
FREQUENTLY ASKED QUESTIONS
Have questions about our MPO trunk cables? We’ve compiled answers to the most common questions from our customers.
Type B polarity means the cable has key-up on one end and key-down on the other end, with fiber positions reversed (1→12, 2→11, etc.). This is the industry standard for data center deployments. Type B polarity ensures proper transmit-to-receive pairing when connecting equipment, cassettes, and patch panels. It eliminates guesswork and ensures first-time-right installations.
One 12-fiber MPO trunk cable replaces six duplex LC cables. Traditional method (6 duplex cables) takes approximately 12 hours total, while MPO trunk method (1 cable) takes only 30 minutes. Time saved: 95% for equivalent connectivity. Additional benefits include less cable congestion, simpler cable management, and easier troubleshooting.
Yes! MPO trunk cables are perfect for direct connections between QSFP+ transceivers, switches, and distribution systems. The Type B polarity configuration ensures proper fiber alignment. Common direct connections include 40G switch to switch, server with QSFP+ NIC to switch, and storage array to network.
Our elite 0.35dB connectors provide significantly better performance than standard 0.5–0.75dB connectors. For 100GBASE-SR4 over OM4 fiber, the total link budget is only 1.9dB. Every connection point matters. With multiple connections in typical deployments, elite connectors provide essential performance margin.
Yes! We provide competitive pricing for volume orders. Discounts typically available at 10+ cables, 25+ cables, 50+ cables, and 100+ cables. Contact us with your quantities for custom pricing. We work with integrators, contractors, and enterprises on projects of all sizes.
Every cable includes comprehensive factory test reports documenting insertion loss for all 12 fibers (measured at applicable wavelengths), return loss verification, polarity confirmation, visual connector inspection results, and pass/fail status. Test reports provided in PDF format with cable serial numbers for traceability.
Standard catalog lengths ship within 2–5 business days. Custom length cables require 2–3 weeks for manufacturing and testing. Expedited production available for urgent projects. Contact us to discuss your project timeline.
All MPO trunk cables backed by manufacturer warranty covering defects in materials and workmanship. Standard warranty: 1–3 years depending on product. Warranty covers replacement of defective cables. Does not cover damage from improper installation, exceeding bend radius, or normal wear.
