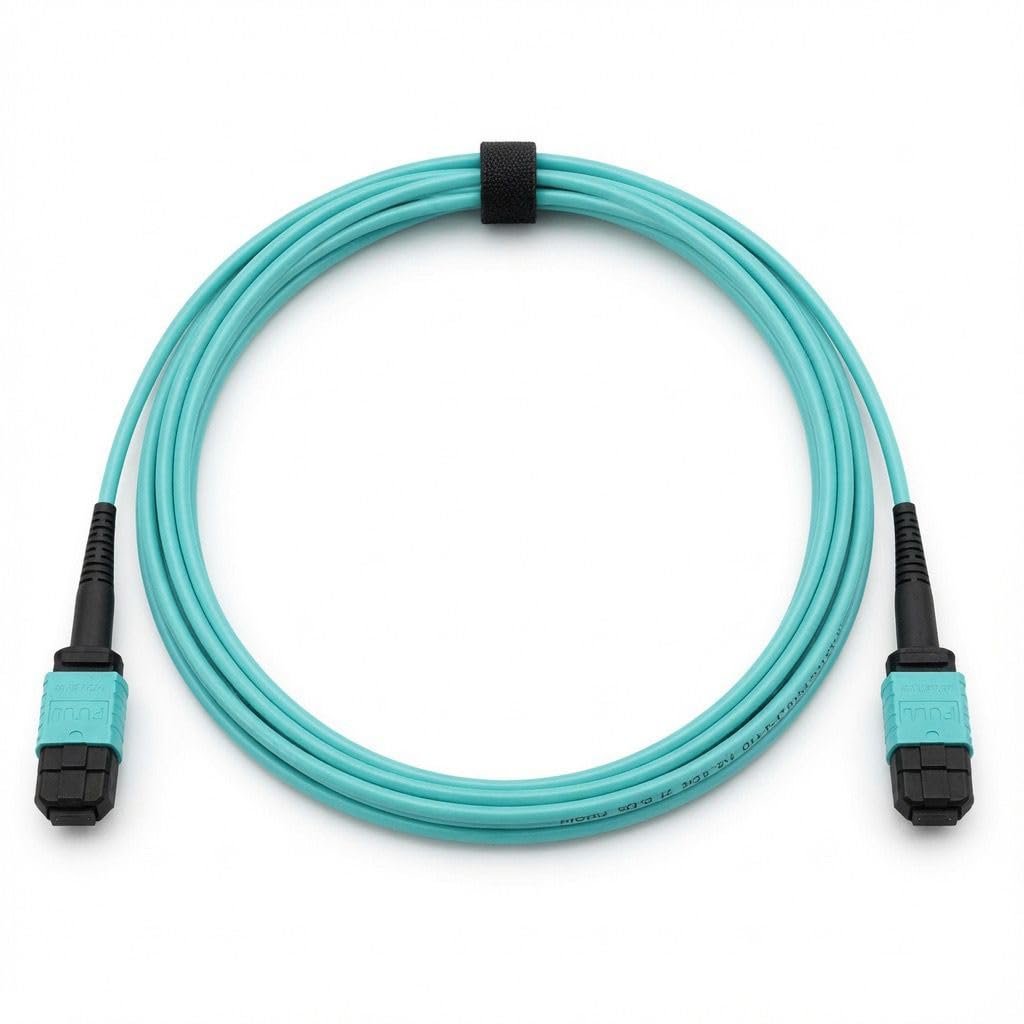

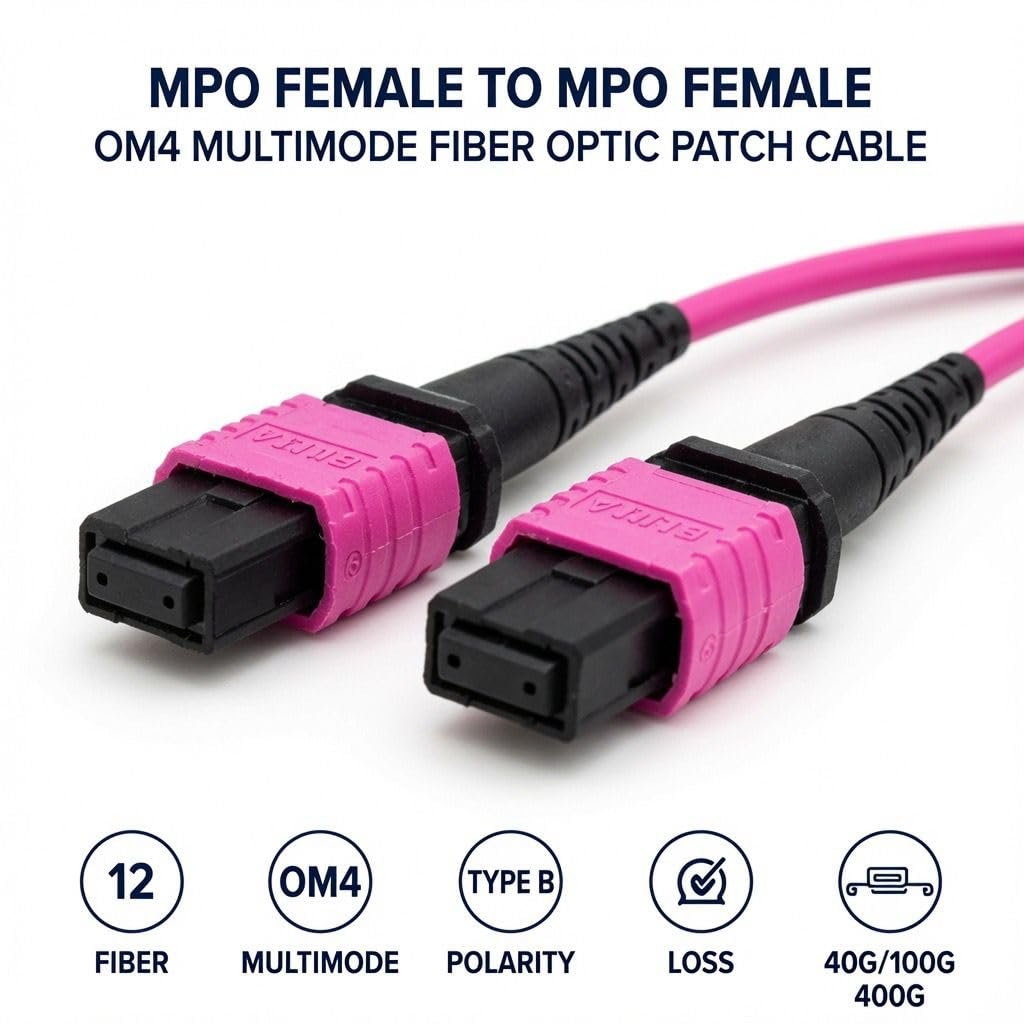

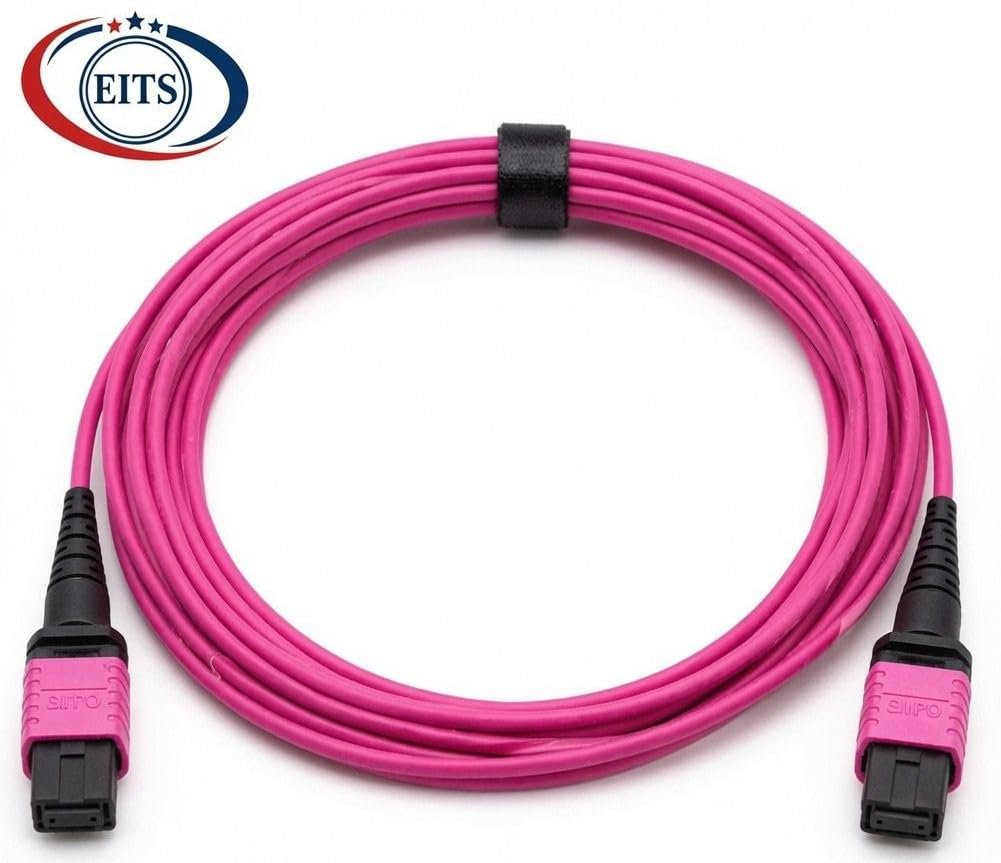

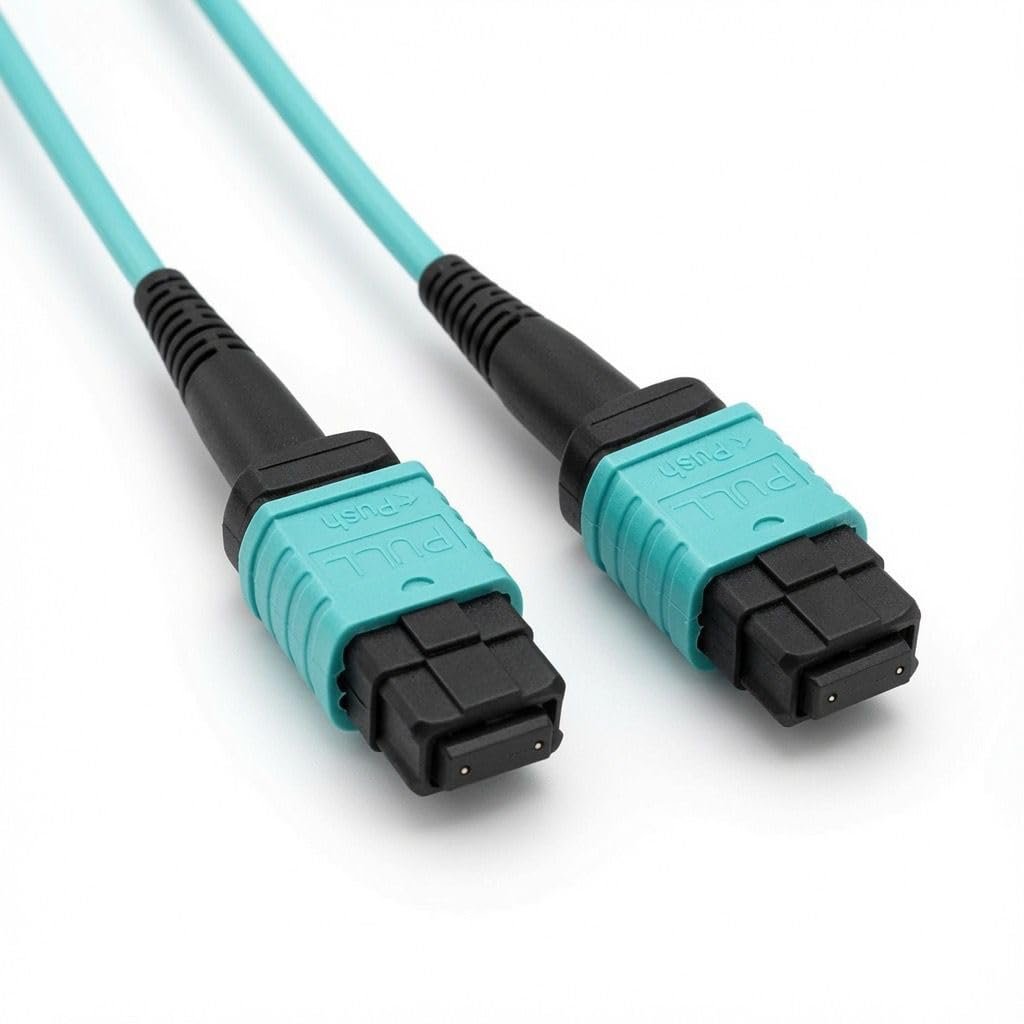

It means both ends of the cable have female MPO connectors u2014 the type with no alignment pins. Female-to-female cables connect to male-pin transceivers, patch panel cassettes, and MPO adapters. If you are connecting two devices that each have male (pinned) ports, you need a female-to-female cable like this one.

Type B polarity means the fiber positions are maintained straight through u2014 fiber 1 on one end connects to fiber 1 on the other end. This is the most common polarity for connecting two identical transceivers such as QSFP+ SR4 to QSFP+ SR4 or QSFP28 SR4 to QSFP28 SR4. Most modern 40G and 100G switch-to-switch and switch-to-server links use Type B.

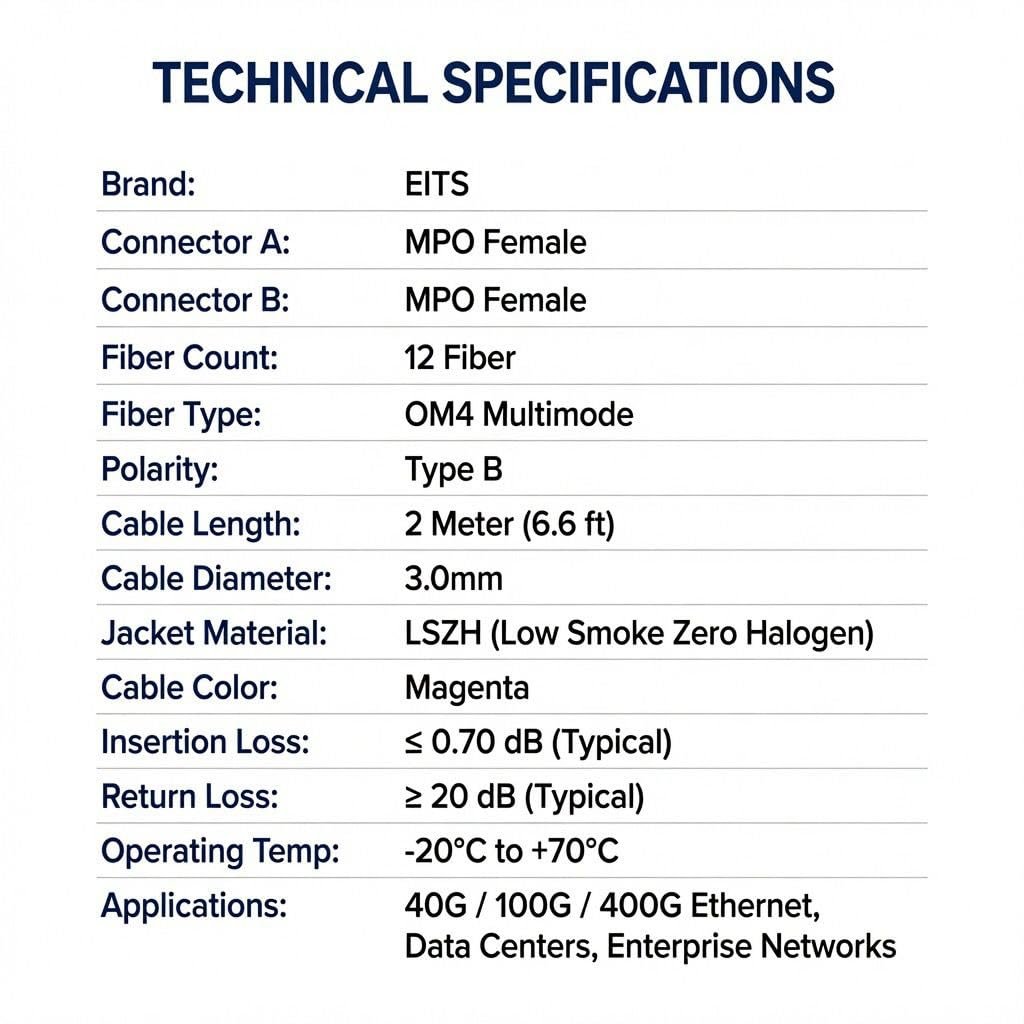

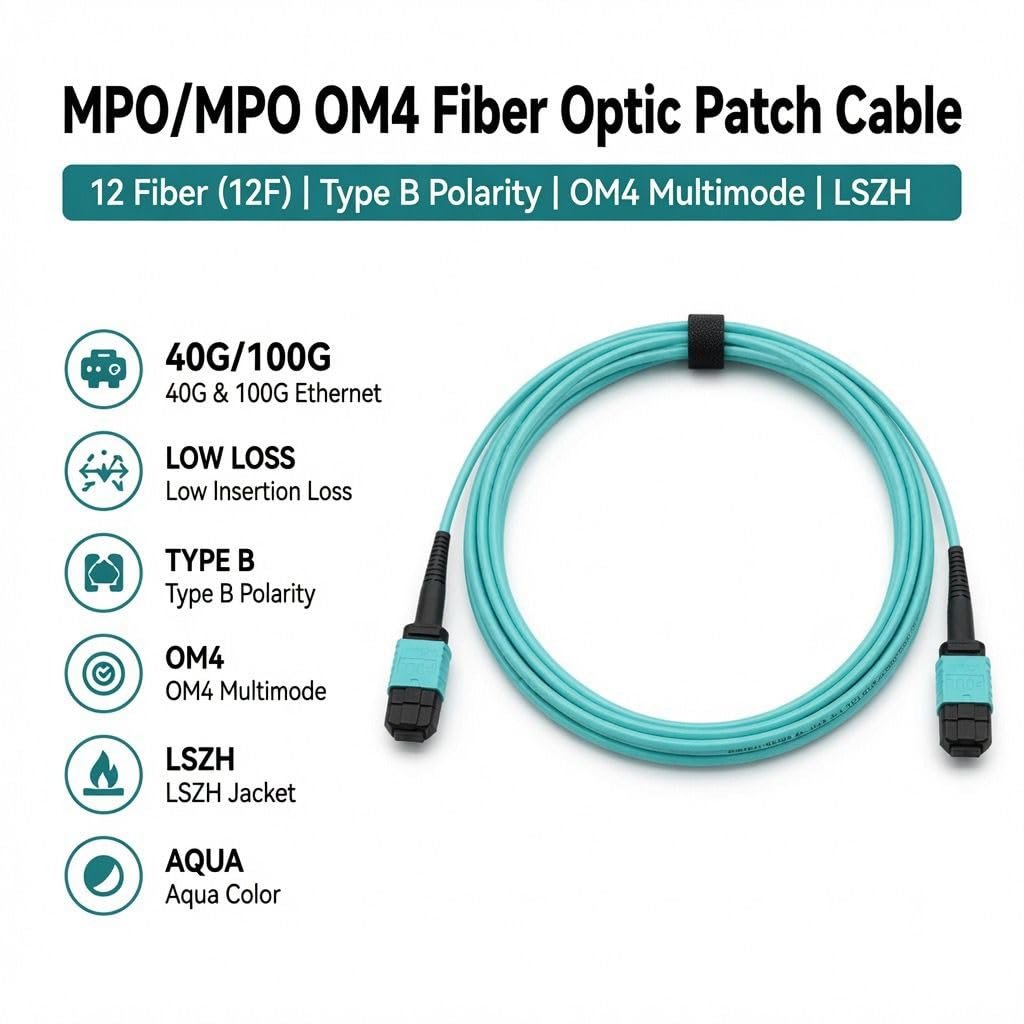

This cable supports 40G (QSFP+ SR4), 100G (QSFP28 SR4), and 10G (SFP+ SR) over OM4 multimode fiber. OM4 fiber provides a 550-meter bandwidth-distance product at 10G and 100-meter reach at 40G and 100G, which covers virtually all in-rack and cross-row data center distances.

OM4 is a higher-performance multimode fiber than OM3. Both are aqua-jacketed and 50-micron core, but OM4 has a higher bandwidth rating u2014 4700 MHz-km versus 2000 MHz-km for OM3. In practice, OM4 supports 100G at 100 meters while OM3 is rated for 100G at 70 meters. If your runs are under 70 meters, OM3 works fine. For longer links or future-proofing, OM4 is the better choice.

Yes. OM4 fiber is fully backward compatible with OM3 equipment and transceivers. You can mix OM3 and OM4 cables in the same link, though the maximum reach will be limited by the lower-grade OM3 segment. For best performance, we recommend keeping links consistent.

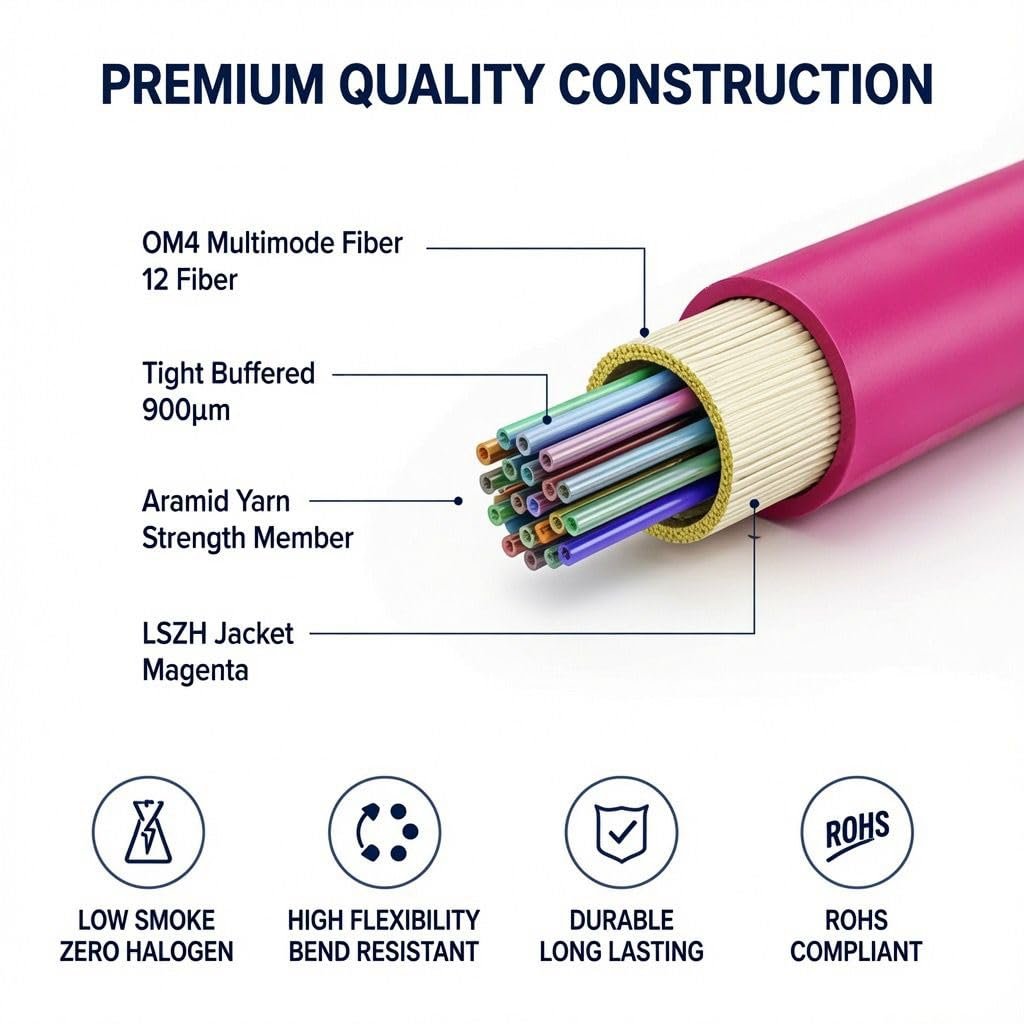

LSZH stands for Low Smoke Zero Halogen. In the event of a fire, LSZH cables produce significantly less toxic smoke than standard PVC-jacketed cables. This is required by building codes in many plenum spaces, equipment rooms, and data centers in Europe and increasingly in the US. If your installation environment specifies LSZH or if you are in an enclosed space with limited ventilation, this cable meets that requirement.

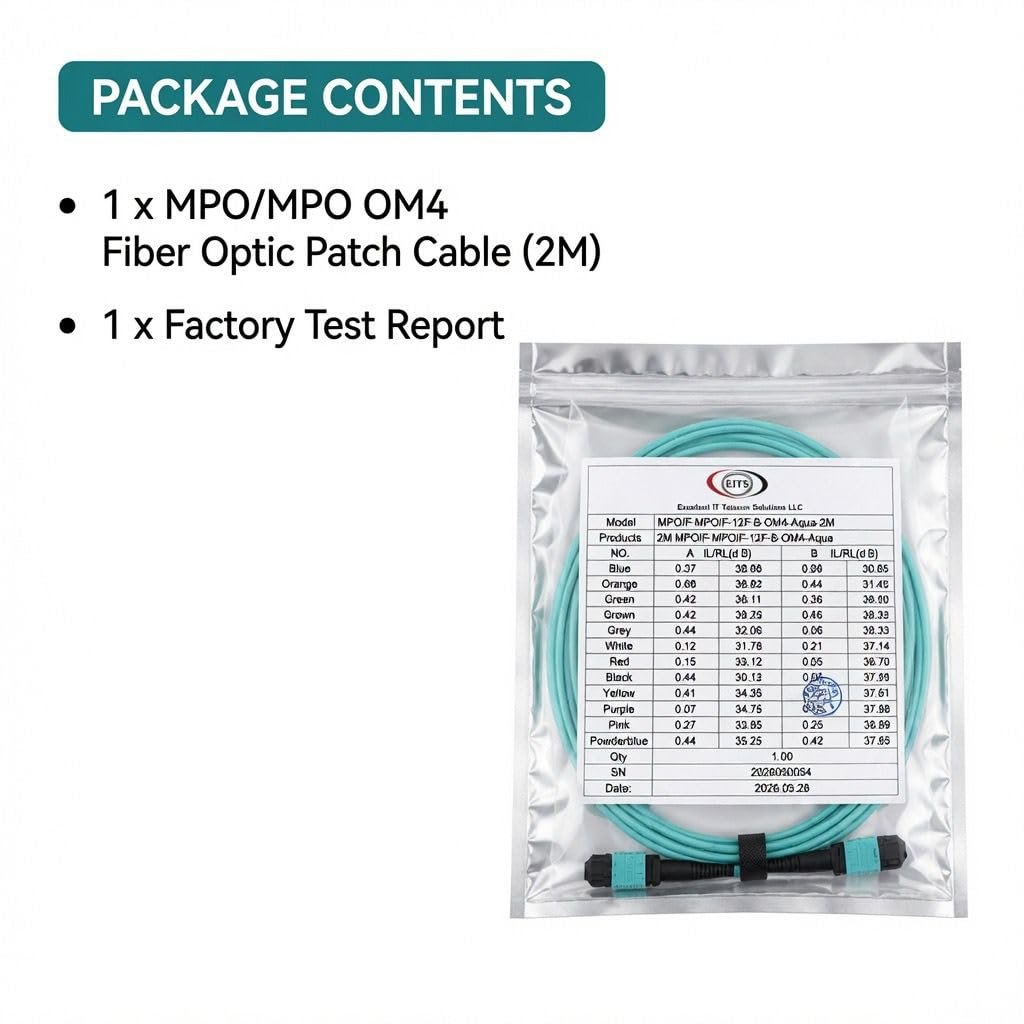

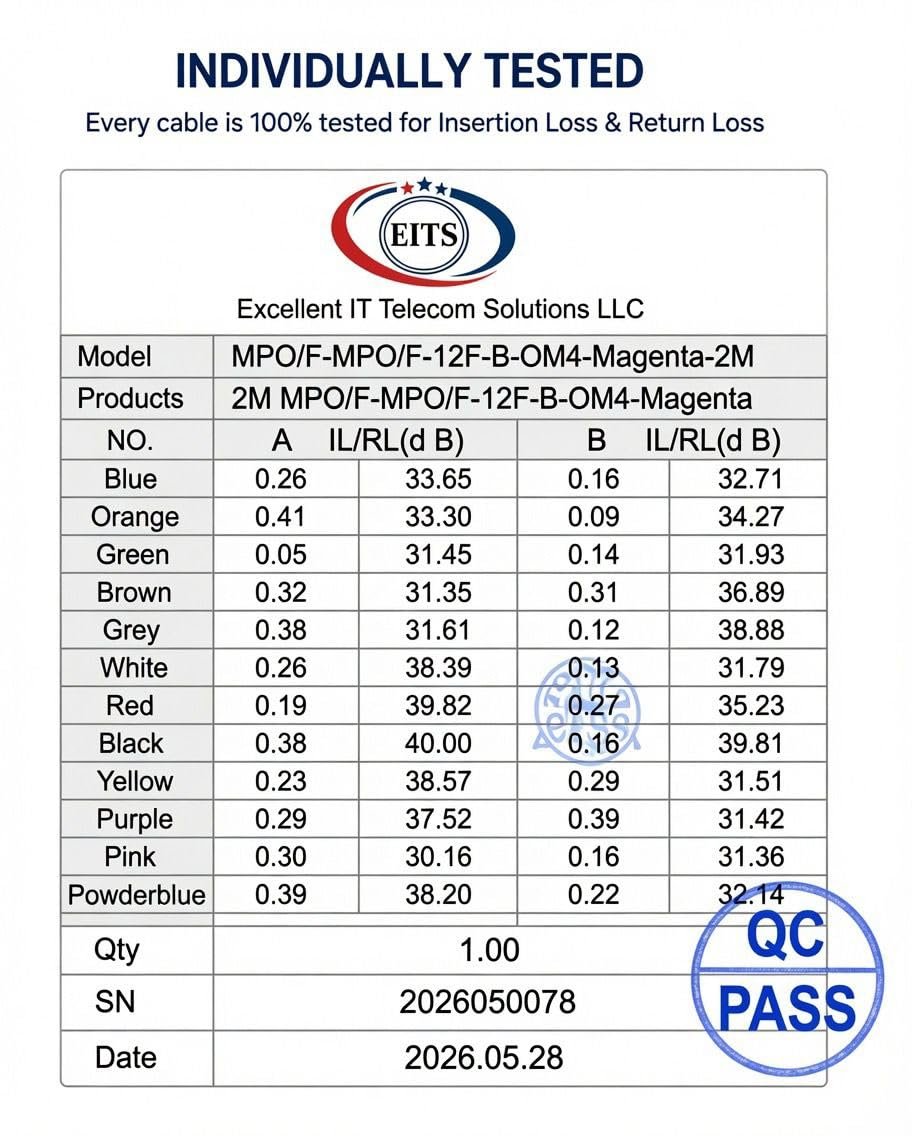

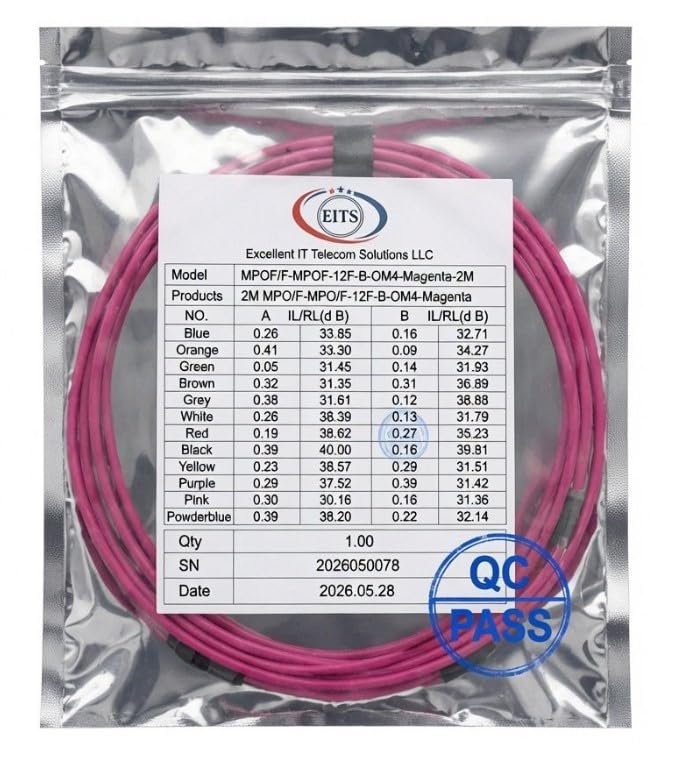

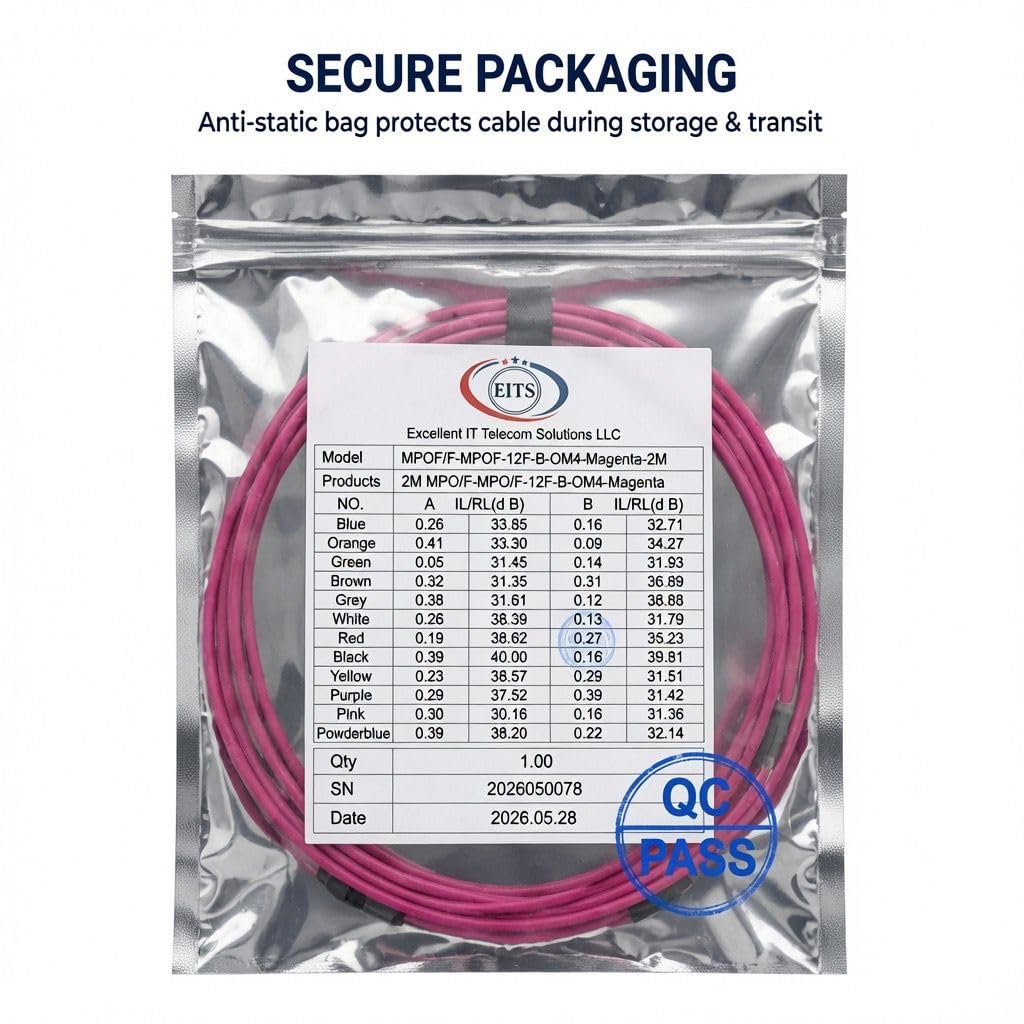

Every EITS MPO patch cable ships with an individual insertion loss test report. The test is performed on the actual cable you receive, not a sample from the batch. The report confirms that insertion loss meets or exceeds TIA and IEC standards. EITS does not ship cables that fail testing.

An MPO patch cable has an MPO connector on each end, keeping all 12 fibers together. It connects two MPO ports directly u2014 for example, a QSFP28 transceiver to an MPO cassette or patch panel. An MPO breakout cable has one MPO connector on one end and multiple smaller connectors (LC, SC) on the other, fanning the fibers out to individual ports. If you are connecting MPO port to MPO port, use this patch cable.

MPO-12 refers to the connector size u2014 an MPO connector housing 12 fibers. This is the most common MPO format for 40G and 100G applications. The full fiber count of this cable is 12 fibers, matching the MPO-12 connector on both ends. There are also MPO-16 and MPO-24 variants for higher-density applications, but those use different transceivers and are not interchangeable with MPO-12 ports.

Yes. EITS can supply MPO Female to Female OM4 cables in custom lengths and in MPO-24 configurations. Contact us through the website for bulk orders, custom lengths, or configurations not listed in the store. All custom cables go through the same factory testing process and ship with individual test reports.
